Building Real-Time Applications with SignalR and ASP.NET Core

Building Real-Time Applications with SignalR and ASP.NET Core 

Introduction to SignalR

Introduction to SignalR 

SignalR (or Signal R) is a library for ASP.NET that allows real-time conversation among server and purchaser. It permits for bi-directional conversation, that means the server can push updates to the purchaser as quickly as they happen. This is exactly beneficial for programs that require stay updates, together with chat programs, stay dashboards, and collaborative tools.

SignalR abstracts the complexities of WebSocket connection control and offers builders with a easy and steady API. It helps a couple of delivery protocols, together with WebSocket, server-despatched events, and lengthy polling, making sure compatibility with a whole lot of purchaser environments and community conditions. SignalR`s structure is designed to allow real-time server-to-server conversation, and seamlessly and successfully helps clients. Here is an outline of the important thing additives and ideas that make up SignalR’s structure:

Hubs

Hubs are the central component of SignalR’s architecture. They provide a high-level pipeline that allows clients and servers to call methods on each other. Hubs simplify the process of sending messages to connected clients and managing connections.

  • Server-to-Client Communication: Hubs enable the server to call methods on connected clients. 
  • Client-to-Server Communication: Clients can invoke methods on the server through the hub. 

Transports

SignalR supports multiple transport protocols to ensure compatibility and performance in different environments. It automatically chooses the best available transport method based on the server and client capabilities.

  • WebSockets: The preferred transport for real-time communication. Due to its low latency and full-duplex capabilities. 
  • Server-Sent Events: A fallback transport that allows the server to send updates to the client. 
  • Long Polling: A fallback transport that simulates real-time communication by repeatedly polling the server for updates. 

Connection Management

SignalR automatically handles connection management, including establishing, maintaining, and terminating connections. It provides events to help you manage the connection lifecycle, such as when a client connects or disconnects.

  • Persistent Connections: Unlike traditional HTTP connections, SignalR maintains a persistent connection between the server and client, allowing for continuous communication.
  • Connection IDs: Each client connection is assigned a unique identifier that can be used to send messages to a specific client.

Groups

SignalR groups allow you to manage connections of collections. They provide an efficient way to send messages to a specific subsets of clients, such as: B. To users in a chat room or participants in a sharing session.

  • Adding to Groups: Clients can be added to groups dynamically.
  • Removing from Groups: Clients can be removed from groups as needed. 
  • Broadcasting to Groups: Messages can be sent to all clients in a group. 

Scale-Out

SignalR supports scaling out across multiple servers to handle a large number of concurrent connections. This is achieved through built-in and third-party scale-out providers.

  • Azure SignalR Service: A managed service that simplifies scaling SignalR applications. 
  • Redis: A distributed cache that can be used to coordinate messages across multiple servers. 
  • SQL Server: A database solution for scaling out SignalR applications. 
  • Service Bus: A messaging infrastructure that can be used for scaling SignalR. 

Protocols

SignalR  makes use of protocols to outline the layout of messages exchanged among the servers and clients. It helps foremost protocols:

  • JSON: A text-primarily based totally protocol that is simple to study and debug.
  • MessagePack: A binary protocol that creates smaller messages as compared to JSON, enhancing performance.

Client Libraries

SignalR provides client libraries for a various of platforms, enabling real-time communication across many types of applications, including web, desktop, and mobile devices.

  • JavaScript/TypeScript: For web applications. 
  • .NET: For desktop and server applications. 
  • Java: For Android applications. 
  • Swift: For iOS applications. 

Setting Up ASP.NET Core with SignalR

To get commenced with ASP.NET SignalR (or .NET SignalR), you want to installation an ASP.NET Core mission. To do this, you want to create a brand-new mission in Visual Studio, upload the desired SignalR packages, and configure the mission to apply SignalR. The setup procedure is simple and properly documented, making it handy even to the ones new to real-time net applications.

Create a New ASP.NET Core Project: 

  • Open Visual Studio and create a new ASP.NET Core Web Application. 
  • Choose the Web Application template and ensure that the project is set to use .NET Core. 

Add SignalR to Your Project:

  • In the NuGet Package Manager, search for and install the Microsoft.AspNetCore.SignalR package.

Adding SignalR to your project

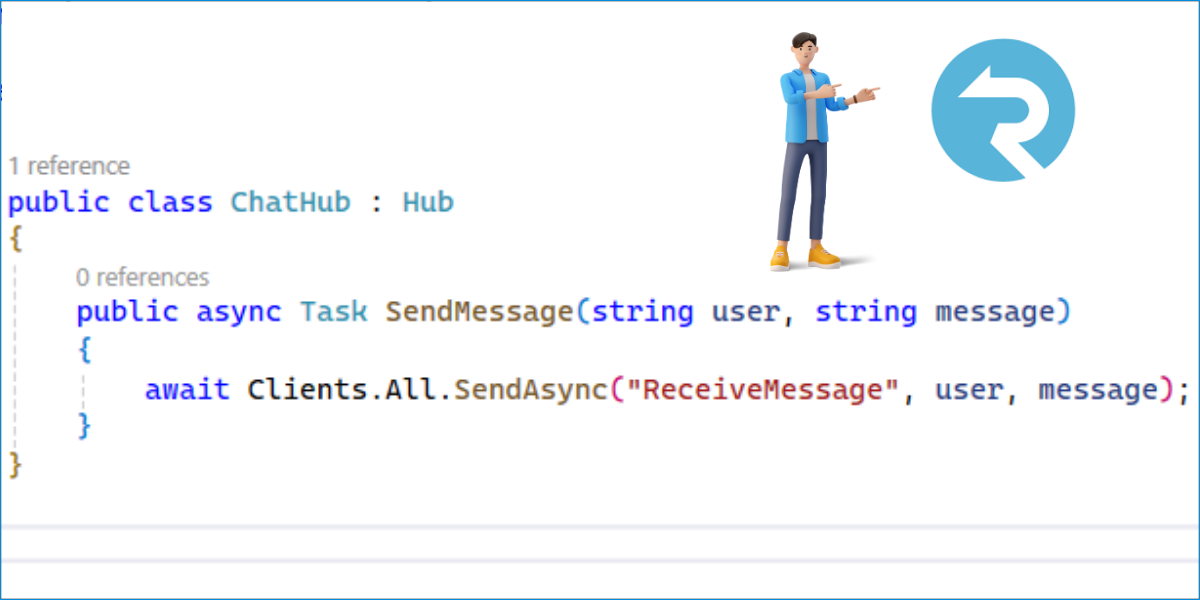

Create a SignalR Hub:

A Hub is a class that serves as the main communication point between the server and clients. Create a new class that inherits from Hub.

Create a SignalR Hub

Configure SignalR in Program.cs:



  • Add SignalR services and configure the middleware in the Program.cs file.By following these steps, you can set up a basic SignalR-enabled ASP.NET Core project, ready for real-time communication.

How to Implement SignalR for Real-Time Notifications in ASP.NET Core Applications

Implementing real-time notifications in an ASP.NET Core application using SignalR involves setting up a hub, configuring a client-side connection, and sending notifications from the server to the client. This setup allows for instant updates, so users receive notifications as soon as they are available.

Setting Up the Project:

  • Follow the steps above to create a new ASP.NET Core project and add SignalR.



Creating the Notification Hub: Create a Hub class to handle notifications.

Create a Notification HubClient-Side Integration: Add the SignalR client library to your HTML page and set up the connection.

Sending Notifications: Use the Hub to send notifications from the server.[Text Wrapping Break]

Real-time notifications are essential for programs that want to tell customers of critical occasions together with new messages, updates, alerts, etc. Implementing SignalR guarantees that those notifications are brought immediately, enhancing the consumer experience.

Creating Chat Applications with SignalR and ASP.NET Core:

Building a chat application is a great way to learn about SignalR. The process involves setting up a project, creating a Hub for managing chat messages, and building a user interface for sending and receiving messages. This tutorial covers all the steps needed to create a fully functional chat application, providing a practical example of SignalR in action. 

Project Setup:

Follow the initial setup steps to create a new ASP.NET Core project and add SignalR. 

Building the Chat Hub:

Building the Chat HubCreate a Hub class for the chat functionality.

Client-Side Chat Interface:

Create an HTML page with a chat interface.

Handling Messages:

Implement message handling on both the server and client sides. 

A chat software is an terrific instance of a real-time software, because it calls for immediately message transport and updates. By following this tutorial, you could construct a sturdy chat software that leverages the energy of SignalR and ASP.NET Core.

Let's Discuss Your Project

Get free Consultation and let us know your project idea to turn into an  amazing digital product.

Best Practices for Using SignalR in ASP.NET Core Real-Time Applications

Best Practices for Using SignalR in ASP.NET Core Real-Time Applications 

SignalR is a powerful library for enabling real-time web functionality in ASP.NET Core applications. To ensure optimal performance, scalability, and maintainability, developers should follow best practices when integrating SignalR into their projects. This blog covers essential practices, complete with code examples.

Optimize Performance

  • Minimize Payloads: Reduce the size of messages sent over the network to improve performance and reduce bandwidth usage.

  • Batch Updates: Send updates in batches to reduce the number of network calls, improving efficiency. 
  • Use Compression: Compress data to reduce bandwidth usage and improve transmission speed. 

Ensure Security

  • Authenticate Users: Use authentication to ensure that only authorized users can access the hub, protecting sensitive data. 
  • Authorize Actions: Implement role-based authorization to control access to specific actions, enhancing security. 
  • Encrypt Data: Use HTTPS to encrypt data transmitted between the client and server, protecting it from interception. 

Handle Connection Issues

  • Reconnect Automatically: Implement auto-reconnect logic to resolve temporary network issues and ensure a seamless user experience.
  • Graceful Degradation: Provide fallback mechanisms for when real-time features are unavailable, maintaining functionality. 

Monitor and Scale

  • Monitor Performance: Use monitoring tools to track the performance of your SignalR hubs, identifying and addressing issues promptly. 
  • Scale Out: Use the Azure SignalR Service or other scaling techniques to handle a large number of connections, ensuring reliability and performance.


Use the Azure SignalR Service for Scalability

For large packages, be sure to use Azure SignalR Service, which offloads user connection control and supports scaling across multiple servers. This service is especially useful for packages with many concurrent connections, as it simplifies the scaling process.

Configure Azure SignalR Service

In this configuration, Add AzureSignalR integrates the Azure SignalR Service with your application, allowing it to handle client connections efficiently.

Benefits of Using Azure SignalR Service

  • Scalability: Automatically scales to handle a large number of connections.

  • Reliability: Provides high availability and disaster recovery capabilities. 
  • Ease of Use: Simplifies the setup and management of SignalR connections. 

Implement Authentication and Authorization

Securing your SignalR hubs is important to prevent unauthorized access and ensure that only authenticated users can interact with your application. Implementing authentication and role-based authorization contributes to this.

Add Authentication to Hub

This setup ensures that only users with valid JWT tokens can access the SignalR hubs.

Benefits of Authentication and Authorization

  • Security: Protects your applications from unauthorized access. 
  • Control: Allows you to effectively manage user privileges and roles.

  • Compliance: Helps you meet security and compliance requirements. 

Use Strongly Typed Hubs

A strongly typed hub enforces a contract between the client and the server, ensuring that the same method signatures and data types are used on both sides. This approach makes the code more maintainable and reduces the chance of runtime errors.

Benefits of Strongly Typed Hubs

  • Type Safety: Ensures that method signatures and data types are consistent. 
  • IntelliSense Support: Provides better development experience with IntelliSense in IDEs.

  • Maintainability: Makes the code easier to understand and maintain. 

Optimize Data Transfer

By minimizing data payload and avoiding unnecessary information transfer, you can significantly reduce bandwidth usage and improve application performance, which is especially important for real-time applications where data is exchanged frequently.

Tips for Optimizing Data Transfer

  • Compress Data: Use compression techniques to reduce the size of data being transferred.

  • Batch Updates: Send data in batches rather than individual messages to reduce the number of network calls.

  • Avoid Redundancy: Ensure that only essential data is sent to clients. 

Handle Connection Lifecycle Events

Gracefully managing client connections, disconnections, and reconnections gracefully is essential for providing a seamless user experience. SignalR provides lifecycle events that you can override to handle these scenarios.

Benefits of Handling Lifecycle Events

  • User Experience: Provides feedback to users about their connection status. 
  • Resource Management: Allows you to clean up resources when a client disconnects. 
  • Debugging: Helps in diagnosing connection issues by logging lifecycle events. 



Use Dependency Injection in Hubs

Injecting offerings into hubs promotes higher separation of worries and makes your code greater modular and testable. SignalR hubs aid dependency injection, permitting you to inject any registered service.

Benefits of Dependency Injection

  • Modularity: Promotes separation of concerns by decoupling dependencies. 
  • Testability: Makes it easier to unit test your hubs by mocking dependencies.

  • Maintainability: Simplifies the management of dependencies and their lifetimes. 



Enable CORS for Cross-Origin Requests

If your clients are hosted on different domains, you must enable Cross-Origin Resource Sharing (CORS) to be able to communicate with your SignalR server, which is important for modern web applications that often span multiple domains.

services.AddCors(options =>

{

    options.AddPolicy(“CorsPolicy”, builder =>

    {

        builder.WithOrigins(“https://example.com”)

               .AllowAnyMethod()

               .AllowAnyHeader()

               .AllowCredentials();

    });

});

app.UseCors(“CorsPolicy”);

Benefits of Enabling CORS

  • Flexibility: Allows your application to interact with clients from different domains. 
  • Security: Provides control over which domains can access your resources. 
  • Compatibility: Ensures that your application works seamlessly across different environments. 

Use Groups for Targeted Messaging

Groups in SignalR provide an efficient way to send messages to a specific group of users. This is useful for scenarios such as chat rooms, where you want to send a message to users in a specific group.

Benefits of Using Groups

  • Efficiency: Reduces the overhead of sending messages to multiple clients individually. 
  • Organization: Helps organize users into logical groups for targeted communication. 
  • Scalability: Improves the scalability of your application by managing group memberships efficiently. 

Feel free to supplement each section with more detailed explanations, additional examples, and practical insights until you reach your desired word count. If you need specific details or further assistance, please let us know.

Integrating SignalR with Angular for Real-Time Web Apps in ASP.NET Core 

For the ones the use of Angular, integrating SignalR can beautify your real-time internet applications. This includes putting in an Angular project, connecting it to SignalR, and imposing real-time information updates. The integration procedure is simple and permits for seamless real-time verbal exchange among your Angular utility and the server.

Set Up Angular:

  • Create a new Angular project and install the @microsoft/signalr package. 

Connect Angular to SignalR:

  • Create a service in Angular to manage the SignalR connection. 

Use the Service in Your Component:

  • Inject the service into your component and call the methods to start the connection and listen for messages. 

Integrating SignalR with Angular allows you to build dynamic and responsive web applications that provide real-time updates to users, enhancing the overall user experience. 

Building Scalable Real-Time Applications Using SignalR and Azure 

To build scalable real-time applications, leveraging Azure`s skills may be relatively beneficial. The Azure SignalR Service simplifies the system of scaling SignalR applications, coping with connections, and making sure that your software can deal with accelerated load. Deploying your software to Azure and configuring it to apply the Azure SignalR Service guarantees that it stays responsive and efficient.

Azure SignalR Service:

The Azure SignalR Service simplifies the process of scaling SignalR applications. It manages connections and scales out automatically. 

Deploying to Azure:

Deploy your ASP.NET Core application to Azure and configure it to use the Azure SignalR Service. 

Scaling with Azure:

Use Azure’s scaling features to handle increased load and ensure your application remains responsive. 

By leveraging Azure, you can build scalable real-time applications that can handle high traffic and provide a seamless user experience. 

Troubleshooting Common Issues in SignalR-Based ASP.NET Core Applications

There are several common issues you may encounter when using SignalR. These can include connection errors, message delivery errors, and performance bottlenecks. To resolve these issues, you need to understand the root cause and apply best practices to resolve the issue and keep your application running smoothly.

Common Errors:

Connection errors, message delivery failures, and performance issues are common. 

Debugging Tips:

Use logging and debugging tools to identify and resolve issues. 

Performance Bottlenecks:

Optimize your application to minimize performance bottlenecks and ensure smooth operation. 

By troubleshooting common issues, you can ensure that your SignalR-based applications run smoothly and provide a seamless user experience. 

Using SignalR for Live Data Updates in ASP.NET Core Web Applications

SignalR is ideal for implementing live data updates in your web applications, including real-time data feeds, data synchronization between server and client, and other use cases where immediate updates are important. SignalR enables your application to provide users with up-to-date information without requiring manual updates.

Real-Time Data Feeds: 

Implement live data feeds with SignalR to provide real-time updates to users. 

Data Synchronization:

Synchronize data between server and client to ensure consistency. 

Use Cases:

Examples of real-world applications using live data updates. 

By using SignalR for live data updates, you can build applications that provide real-time information to users, enhancing the overall user experience. 

Eager to discuss about your project ?

Real-Time Collaboration Features with SignalR in ASP.NET Core 

Building real-time collaboration capabilities with SignalR includes implementing features such as co-editing, presence detection, and real-time notifications of shared actions. These features improve the user experience by allowing multiple users to interact and collaborate in real time, making applications more dynamic and interactive. Real-time collaboration is a key feature for modern web applications. It allows users to interact and collaborate seamlessly. SignalR, a library for ASP.NET Core, facilitates real-time communication by providing an easy and efficient way to add real-time web capabilities to your applications. In this blog, we will explain how to implement real-time collaboration capabilities using SignalR in ASP.NET Core with code examples and best practices. 

Collaborative Editing: 

Implement collaborative editing features with SignalR to allow multiple users to edit documents in real-time. 

Presence Detection:

Implement presence detection to show which users are online and available. 

Conclusion

Building real-time applications with SignalR and ASP.NET Core provides a powerful and flexible solution for creating interactive and responsive web experiences. SignalR  makes it easy to add real-time capabilities, enabling features such as live chat, collaborative document editing, and real-time notifications.

SignalR’s powerful architecture, including hubs, multiple delivery protocols, connection management, and scalability features, enables developers to build applications that enable seamless and instant communication between clients and servers. With the ability to manage many concurrent connections and scale to multiple servers, applications can grow confidently to accommodate increasing user demands.

Key takeaways for building real-time applications with SignalR and ASP.NET Core include:

  • Ease of Integration: SignalR integrates seamlessly with ASP.NET Core, allowing you to add real-time capabilities with minimal effort.

  • Scalability: With a variety of scale-out providers and support from Azure SignalR Service, your applications can handle high traffic and a large user base.

  • Security: Implementing authentication and authorization ensures that your real-time capabilities are secure and only accessible to authorized users.

  • Performance Optimization: Techniques such as minimizing payloads, batching updates, and using compression can help optimize overall performance and reduce bandwidth usage.

  • Cross-Platform Support: SignalR provides client libraries for multiple platforms, enabling real-time communication in web, desktop, and mobile applications. 

Related Topics

Cleared Doubts: FAQs

  • Real-Time Updates: Push notifications and updates to connected clients in real time.
  • Automatic Reconnections: Automatically reconnects clients in case of temporary connection loss.
  • Connection Groups: Enables logical grouping of clients for targeted messaging, making it ideal for chat applications, live dashboards, and collaborative tools.

A Hub is the core component of SignalR that manages communication between the server and clients. It simplifies real-time functionality by allowing bidirectional communication, enabling the server to invoke client methods and vice versa.

SignalR supports:

WebSockets: The preferred protocol for performance and efficiency.

Server-Sent Events (SSE): A fallback for browsers that don’t support WebSockets.

Long Polling: Ensures compatibility when other protocols are unavailable.

Yes, SignalR integrates seamlessly with Blazor to add real-time communication capabilities. Blazor Server apps use SignalR internally to maintain the stateful connection between the server and browser.

SignalR is versatile and widely used in:

  • Chat Applications: Real-time communication between users.
  • Live Dashboards: Instant updates for data visualizations.
  • Real-Time Notifications: Alerts for applications like stock trading platforms.
  • Collaborative Tools: Enabling shared document editing or whiteboards.
  • Online Gaming: Synchronizing game states across players.

Use HTTPS to encrypt data in transit.

Implement authentication and authorization to ensure only valid users can access the Hub.

Validate inputs to protect against injection attacks.

  1. Use tools like Azure SignalR Service for secure scaling.

Absolutely. SignalR integrates with Azure SignalR Service, allowing real-time applications to scale globally without managing infrastructure.

Scale SignalR apps using:

  • Azure SignalR Service: Manages connections and scales automatically.
  • Backplanes: Use Redis or SQL Server to share connection data across multiple servers.

Yes. SignalR supports mobile platforms through client libraries for Xamarin and other mobile frameworks, enabling real-time updates on mobile apps.

HubConnection is a client-side class that manages the connection to a SignalR Hub. It allows sending messages to and receiving updates from the server.

  1. Secure connections with HTTPS and robust authentication.
  1. Optimize performance by minimizing message sizes and using efficient serialization.
  1. Scale smartly with Azure SignalR Service or backplanes.
  1. Handle errors with proper logging and client-side error management.
  1. Test rigorously for real-world scenarios, including disconnections and reconnections.

Globally Esteemed on Leading Rating Platforms

Earning Global Recognition: A Testament to Quality Work and Client Satisfaction. Our Business Thrives on Customer Partnership

5.0

5.0

5.0

5.0

Book Appointment
sahil_kataria
Sahil Kataria

Founder and CEO

Amit Kumar QServices
Amit Kumar

Chief Sales Officer

Talk To Sales

USA

+1 (888) 721-3517

skype

Say Hello! on Skype

+91(977)-977-7248

Phil J.
Phil J.Head of Engineering & Technology​
QServices Inc. undertakes every project with a high degree of professionalism. Their communication style is unmatched and they are always available to resolve issues or just discuss the project.​

Thank You

Your details has been submitted successfully. We will Contact you soon!
